多边-二向色分光镜
联系人：销售咨询
电话：15001755588
邮箱：sales@feinixs.com
微信扫码
码上联系
规格参数

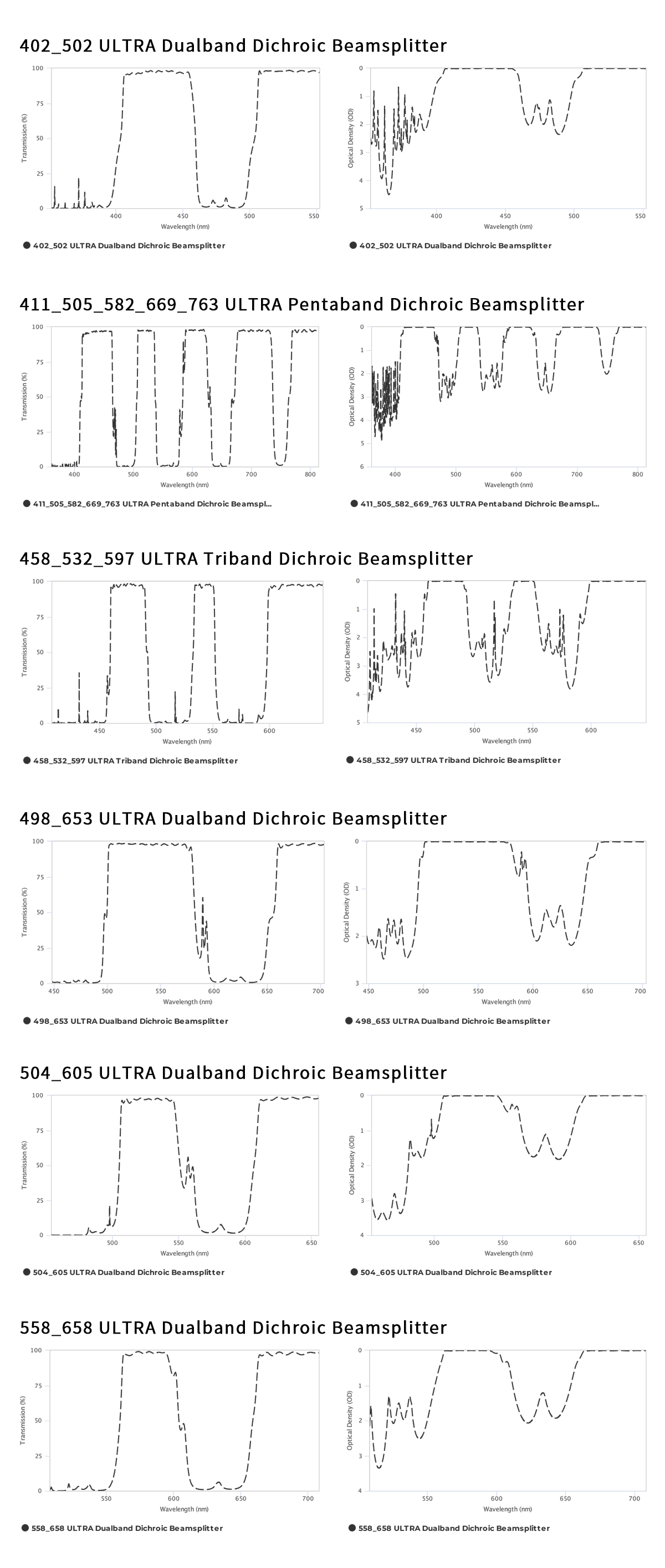

滤光片型号 (Model) | 截止波长 (nm) | 反射频带 Reflection Band | 透射频带 Transmission Band | 透射波前误差 TWE | 尺寸 (mm) | 滤光片厚度 (mm) | 价格 |

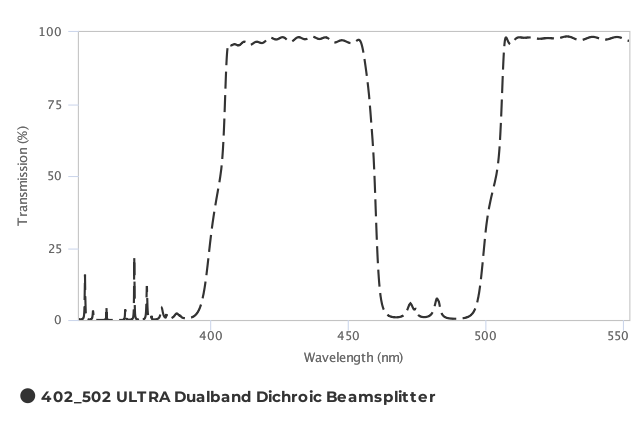

| 402_502 ULTRA Dualband Dichroic Beamsplitter | 402±3.0 502±3.0 | 325-395nm >95% R Average 465-495nm >95% R Average | 409-451nm >93% T Average 509-700nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥6,096.00 |
| 409_496_567_655 ULTRA Quadband Dichroic Beamsplitter | 409±3.0 496±3.0 567±3.0 655±4.0 | 365-404nm >95% R Average 458-490nm >95% R Average 530-560nm >95% R Average 619-647nm >95% R Average | 414-447nm >93% T Average 502-519nm >93% T Average 574-607nm >93% T Average 663-800nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥9,480.00 |
| 411_505_582_669_763 ULTRA Pentaband Dichroic Beamsplitter | 411±3.0 505±3.0 582±3.0 669±4.0 763±4.0 | 200-402nm >95% R Average 476-495nm >95% R Average 548-571nm >95% R Average 638-657nm >95% R Average 746-752nm >95% R Average | 417-459nm >93% T Average 513-529nm >93% T Average 592-616nm >93% T Average 681-727nm >93% T Average 772-848nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥10,716.00 |
| 437_514_603 ULTRA Triband Dichroic Beamsplitter | 437±3.0 514±3.0 603±4.0 | 370-431nm >95% R Average 483-508nm >95% R Average 555-595nm >95% R Average | 443-471nm >93% T Average 520-538nm >93% T Average 611-700nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥8,016.00 |
| 458_532_597 ULTRA Triband Dichroic Beamsplitter | 458±3.0 532±3.0 597±3.0 | 400-453nm >95% R Average 497-527nm >95% R Average 557-592nm >95% R Average 672-900nm >95% R Average | 463-487nm >93% T Average 537-549nm >93% T Average 602-662nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥8,016.00 |
| 491_574 ULTRA Dualband Dichroic Beamsplitter | 491±3.0 574±3.0 | 390-485nm >95% R Average 539-566nm >95% R Average | 497-527nm >93% T Average 582-700nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥6,096.00 |
| 498_653 ULTRA Dualband Dichroic Beamsplitter | 498±3.0 653±4.0 | 350-491nm >95% R Average 600-643nm >95% R Average | 505-570nm >93% T Average 663-850nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥6,096.00 |
| 499_654 ULTRA Dualband Dichroic Beamsplitter | 499±3.0 654±4.0 | 390-489nm >95% R Average 574-644nm >95% R Average | 509-545nm >93% T Average 664-890nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥6,096.00 |
| 501_591 Dualband Dichroic Beamsplitter | 501±3.0 591±3.0 | 450-495nm >95% R Average 554-580nm >95% R Average | 508-539nm >93% T Average 600-682nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥4,392.00 |
| 504_605 ULTRA Dualband Dichroic Beamsplitter | 504±3.0 605±4.0 | 400-495nm >95% R Average 569-596nm >95% R Average | 509-540nm >93% T Average 614-700nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥6,096.00 |
| 520_590 ULTRA Dualband Dichroic Beamsplitter | 520±3.0 590±3.0 | 350-512nm >95% R Average 563-581nm >95% R Average | 528-547nm >93% T Average 599-800nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥6,096.00 |
| 558_658 ULTRA Dualband Dichroic Beamsplitter | 558±3.0 658±4.0 | 470-547nm >95% R Average 615-646nm >95% R Average | 564-592nm >93% T Average 665-725nm >93% T Average | < 0.25 Wave RMS @ 632.8nm | 25.2×35.6 | 1.05 | ￥6,096.00 |
产品详情
产品特点
优于传统层压滤波片的性能和耐久性。
采用创新的SIRRUS™等离子沉积工艺进行硬涂层处理。
产品应用
荧光显微镜
