三带通-滤波片
联系人：销售咨询
电话：15001755588
邮箱：sales@feinixs.com
微信扫码
码上联系
规格参数

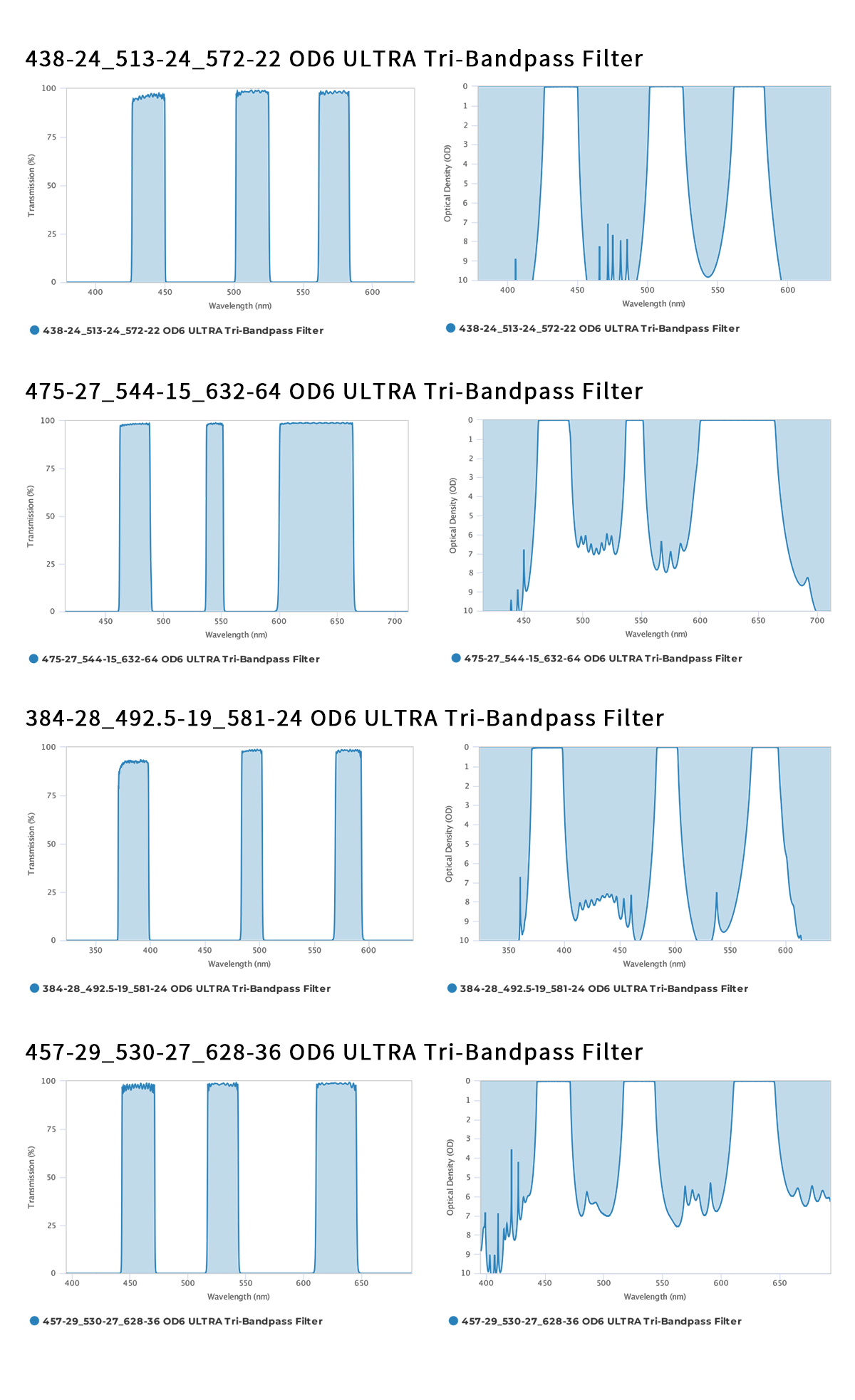

滤光片型号 (Model) | 中心波长 (nm) | 半峰宽(nm) FWHM | 透射频带 Transmission Band | 屏蔽等级 Blocking Level | 直径尺寸 (mm) | 滤光片厚度(mm) | 价格 |
| 438-24_513-24_572-22 OD6 ULTRA Tri-Bandpass Filter | 438 ±2.0 513 ±2.0 572 ±2.0 | Band 1: 24 ±2.0 Band 2: 24 ±2.0 Band 3: 22 ±2.0 | 429-447nm >93% T Average 504-522nm >93% T Average 564-580nm >93% T Average | OD6:300-417nm, 456nm,458-493nm, 495nm, 530nm, 532-556nm,589nm, 592-900nm; OD3:900-1100nm | 25 | 2.00 | ￥8,100.00 |
| 475-27_544-15_632-64 OD6 ULTRA Tri-Bandpass Filter | 475 ±2.0 544 ±2.0 632 ±3.0 | Band 1: 27 ±2.0 Band 2: 15 ±2.0 Band 3: 64 Nominal | 465-485nm >93% T Average 539-549nm >93% T Average 603-661nm >93% T Average | OD6:300-452nm 496-528nm 558-585nm 679-800nm | 25 | 2.00 | ￥8,100.00 |

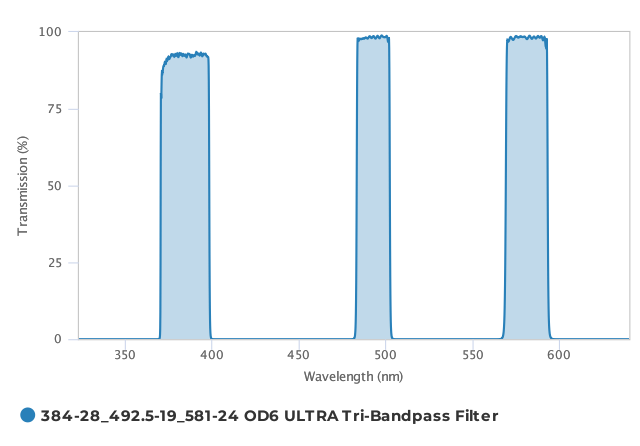

| 384-28_492.5-19_581-24 OD6 ULTRA Tri-Bandpass Filter | 384 ±2.0 492.5 ±2.0 581 ±2.0 | Band 1: 28 ±2.0 Band 2: 19 ±2.0 Band 3: 24 ±2.0 | 373-395nm >93% T Average 486-499nm >93% T Average 572-590nm >93% T Average | OD6:300-362nm, 406-475nm,476nm, 508nm,510-559nm, 600nm,602-900nm; OD3:900-1100nm | 25 | 2.00 | ￥8,100.00 |
| 457-29_530-27_628-36 OD6 ULTRA Tri-Bandpass Filter | 457 ±2.0 530 ±2.0 628 ±3.0 | Band 1: 29 ±2.0 Band 2: 27 ±2.0 Band 3: 36 Nominal | 445-469nm >93% T Average 519-541nm >93% T Average 613-643nm >93% T Average | OD6:300-436nm, 479-508nm, 553-598nm, 660-850nm; OD2:250-300nm, 850-1100nm | 25 | 2.00 | ￥8,100.00 |
产品详情
产品特点
优于传统层压滤波片的性能和耐久性。
采用创新的SIRRUS™等离子沉积工艺进行硬涂层处理。
定制可尺寸。
产品应用
荧光显微镜，流式细胞术，荧光成像和许多其他应用
