超窄带通滤波片(860~1099nm)「啁啾科技」

当前所在位置：首页>产品中心>

超窄带通滤波片(860~1099nm)

硬涂层超窄带滤波片带宽窄至0.15nm，具有业界较高的传输水平和宽范围的带外阻塞。有单腔和多腔滤波片可供选择。这些超窄带滤波器被用于激光雷达、天文学、拉曼光谱和各种激光应用。

联系人：销售咨询

电话：15001755588

邮箱：sales@feinixs.com

微信扫码
码上联系

规格参数
产品详情
产品特点
产品应用
资料下载

规格参数

滤光片型号 (Model)	滤波片设计	中心波长 (nm)	半峰宽(nm) FWHM	透射频带 Transmission Band	屏蔽等级 Blocking Level	直径尺寸 (mm)	滤光片厚度 (mm)	价格

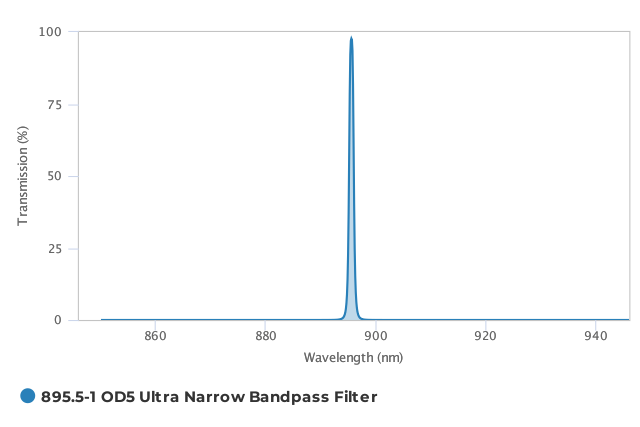

895.5-1 OD5 Ultra Narrow Bandpass Filter	多腔	895.5	<1	895.5nm >90% T Absolute	OD5:700-775nm, 918-1100nm	25.0	2.00	￥20,412.00
895.8-1 OD5 Ultra Narrow Bandpass Filter	多腔	895.8	<1	895.8nm >90% T Absolute	OD5:700-775nm, 918-1100nm	25.0	2.00	￥20,412.00
912-1.5 OD4 Ultra Narrow Bandpass Filter	多腔	912	<1.7	912nm >90% T Absolute	OD4:890-908nm, 915-1020nm	25.0	2.00	￥16,824.00
935.0-0.45 OD5 Ultra Narrow Bandpass Filter	多腔	935	<0.55	935.0nm >85% T Absolute	OD5:250-916nm, 955-1400nm	25.3	2.00	￥41,880.00
935.12-0.45 OD5 Ultra Narrow Bandpass Filter	多腔	935.12	<0.55	935.12nm >85% T Absolute	OD5:250-916nm, 955-1400nm	25.3	2.00	￥41,880.00
935.4-0.45 OD5 Ultra Narrow Bandpass Filter	多腔	935.4	<0.55	935.4nm >85% T Absolute	OD5:250-916nm, 955-1400nm	25.3	2.00	￥41,880.00
1030.7-3 OD5 Ultra Narrow Bandpass Filter	多腔	1030.7	<3.4	1030.7nm >95% T Absolute	OD5:1053-1200nm, 200-1007nm	25.3	2.00	￥18,624.00
1031.2-0.6 OD8 Ultra Narrow Bandpass Filter	多腔	1031.2	<0.7	1031.2nm >85% T Absolute	OD8:1042-1130nm, 940-1020nm	25.3	2.00	￥42,888.00
1031.4-0.6 OD8 Ultra Narrow Bandpass Filter	多腔	1031.4	<0.7	1031.4nm >85% T Absolute	OD8:1042-1130nm, 940-1020nm	25.3	2.00	￥42,888.00
1053-0.5 OD6 Ultra Narrow Bandpass Filter	多腔	1053	<0.6	1053nm >90% T Absolute	OD6:1074-1200nm, 200-1032nm	25.0	2.00	￥45,912.00
1053-4 OD6 Ultra Narrow Bandpass Filter	多腔	1053	<4.5	1053nm >90% T Absolute	OD6:1069-1200nm, 945-1037nm	25.0	2.00	￥20,412.00
1060.7-2.6 OD5 Ultra Narrow Bandpass Filter	多腔	1060.7	<2.9	1060.7nm >95% T Absolute	OD5:1073-1200nm, 950-1049nm; OD3:680-950nm	50.0	2.00	￥37,992.00
1062.3-1.8 OD5 Ultra Narrow Bandpass Filter	多腔	1062.3	<2.0	1062.3nm >90% T Absolute	OD5:1072-1200nm, 250-1053nm	25.0	2.00	￥18,624.00
1063.1-1.8 OD6 Ultra Narrow Bandpass Filter	多腔	1063.1	<2.0	1063.1nm >95% T Absolute	OD6:1078-1300nm, 800-1050nm	25.3	2.00	￥20,412.00
1063.5-1 OD7 Ultra Narrow Bandpass Filter	多腔	1063.5	<1.2	1063.5nm >90% T Absolute	OD7:1092-1100nm, 300-1037nm	25.3	2.00	￥32,148.00
1063.9-1 OD6 Ultra Narrow Bandpass Filter	多腔	1063.9	<1.2	1063.9nm >90% T Absolute	OD6:1086-1600nm, 800-1041nm	25.0	2.00	￥41,364.00
1064-0.5 OD6 Ultra Narrow Bandpass Filter	多腔	1064	<0.6	1064 nm >85% T Absolute	OD6:1086-1200nm, 200-1042nm	25.3	2.00	￥45,912.00
1064.1-0.9 OD5 Ultra Narrow Bandpass Filter	多腔	1064.1	<0.9	1064.1nm >90% T Absolute	OD5:300-1055nm, 1073-1300nm	12.5	2.00	￥12,300.00
1064.1-1 OD7 Ultra Narrow Bandpass Filter	多腔	1064.1	<1.2	1064.1nm >90% T Absolute	OD7:1092-1100nm, 300-1037nm	25.3	2.00	￥32,148.00
1064.15-1 OD8 Ultra Narrow Bandpass Filter	多腔	1064.15	<1.2	1064.15nm >90% T Absolute	OD8:354.72nm, 532.08nm; OD6:1086-1200nm, 200-1042nm	25.3	2.00	￥32,148.00
1064.15-1 OD8 Ultra Narrow Bandpass Filter	多腔	1064.15	<1.2	1064.15nm >90% T Absolute	OD8:354.72nm, 532.08nm; OD6:1086-1200nm, 200-1042nm	50.6	2.00	￥68,856.00
1064.15-1.8 OD6 Ultra Narrow Bandpass Filter	多腔	1064.15	<2.0	1064.15nm >90% T Absolute	OD6:1087-1300nm, 400-1041nm	25.0	2.00	￥20,412.00
1064.16-0.4 OD5 Ultra Narrow Bandpass Filter	单腔	1064.16 +0.5/-0.3	<0.6	Peak >85% T Absolute	OD5:1094-1150nm, 200-1024nm; OD4:1150-1200nm	25.3	2.00	￥41,880.00
1064.2-0.6 OD5 Ultra Narrow Bandpass Filter	多腔	1064.2	<0.7	1064.2nm >85% T Absolute	OD5:1086-1300nm, 300-1042nm	25.0	2.00	￥41,880.00
1064.2-0.7 OD5 Ultra Narrow Bandpass Filter	多腔	1064.2	<0.8	1064.2nm >90% T Absolute	OD5:1086-1300nm, 300-1042nm	25.0	2.00	￥41,880.00
1064.2-0.7 OD5 Ultra Narrow Bandpass Filter	多腔	1064.2	<0.8	1064.2nm >90% T Absolute	OD5:1086-1300nm, 300-1042nm	50.8	2.00	￥85,452.00
1064.4-0.85 OD6 Ultra Narrow Bandpass Filter	多腔	1064.4	<1.0	1064.4nm >90% T Absolute	OD6:1087-1800nm, 800-1042nm	37.5	2.00	￥61,128.00
1064.4-0.85 OD6 Ultra Narrow Bandpass Filter	多腔	1064.4	<1.0	1064.4nm >90% T Absolute	OD6:1087-1800nm, 800-1042nm	25.0	2.00	￥41,364.00
1064.4-0.9 OD5 Ultra Narrow Bandpass Filter	多腔	1064.4	<0.9	1064.4nm >90% T Absolute	OD5:300-1055nm, 1073-1300nm	12.5	2.00	￥12,300.00
1064.4-1 OD7 Ultra Narrow Bandpass Filter	多腔	1064.4	<1.2	1064.4nm >90% T Absolute	OD7:1092-1100nm, 300-1037nm	25.3	2.00	￥32,148.00
1064.4-2 OD6 Ultra Narrow Bandpass Filter	多腔	1064.4	<2.3	1064.4nm >90% T Absolute	OD6:1087-1800nm, 800-1041nm	25.0	2.00	￥27,576.00
1064.6-0.4 OD6 Ultra Narrow Bandpass Filter	单腔	1064.6 +0.4/-0.1	<0.5	Peak >85% T Absolute	OD6:300-1000nm	50.4	2.00	￥89,856.00
1064.6-0.9 OD5 Ultra Narrow Bandpass Filter	多腔	1064.6	<0.9	1064.6nm >90% T Absolute	OD5:300-1055nm, 1073-1300nm	12.5	2.00	￥12,300.00
1064.7-1 OD7 Ultra Narrow Bandpass Filter	多腔	1064.7	<1.2	1064.7nm >90% T Absolute	OD7:1092-1100nm, 300-1037nm	25.3	2.00	￥32,148.00
1064.9-0.4 OD5 Ultra Narrow Bandpass Filter	单腔	1064.9 +0.5/-0.3	<0.6	Peak >85% T Absolute	OD5:1094-1150nm, 200-1024nm; OD4:1150-1200nm	25.3	2.00	￥41,880.00
1065-1 OD8 Ultra Narrow Bandpass Filter	多腔	1065	<1.2	1065nm >90% T Absolute	OD8:354.72 nm, 532.08nm; OD6:1086-1200nm, 200-1042nm	50.6	2.00	￥68,856.00
1065-1.8 OD6 Ultra Narrow Bandpass Filter	多腔	1065	<2.0	1065nm >90% T Absolute	OD6:1079-1300nm, 800-1051nm	25.3	2.00	￥20,412.00
1065-3 OD4 Ultra Narrow Bandpass Filter	多腔	1065	<3.4	1065nm >90% T Absolute	OD4:1078-1200nm, 200-1051nm	30.0	2.00	￥26,424.00
1072.3-5.2 OD6 Ultra Narrow Bandpass Filter	多腔	1072.3	<5.7	1072.3nm >90% T Absolute	OD6:1096-1200nm, 950-1049nm; OD5:200-950nm	25.0	2.00	￥19,116.00
1075-1.5 OD4 Ultra Narrow Bandpass Filter	多腔	1075	<1.7	1075nm >95% T Absolute	OD4:1083-1800nm, 700-1068nm	34.9	5.00	￥35,664.00
1080-0.2 OD3 Ultra Narrow Bandpass Filter	单腔	1080	<0.2	1080nm >90% T Absolute	OD3:980-1047nm, 1113-1180nm	25.4	2.00	￥34,044.00
1083-1.4 OD3 Ultra Narrow Bandpass Filter	多腔	1083	<1.7	1083nm >90% T Absolute	OD3:1091-1500nm, 480-1075nm	25.4	2.00	￥20,436.00

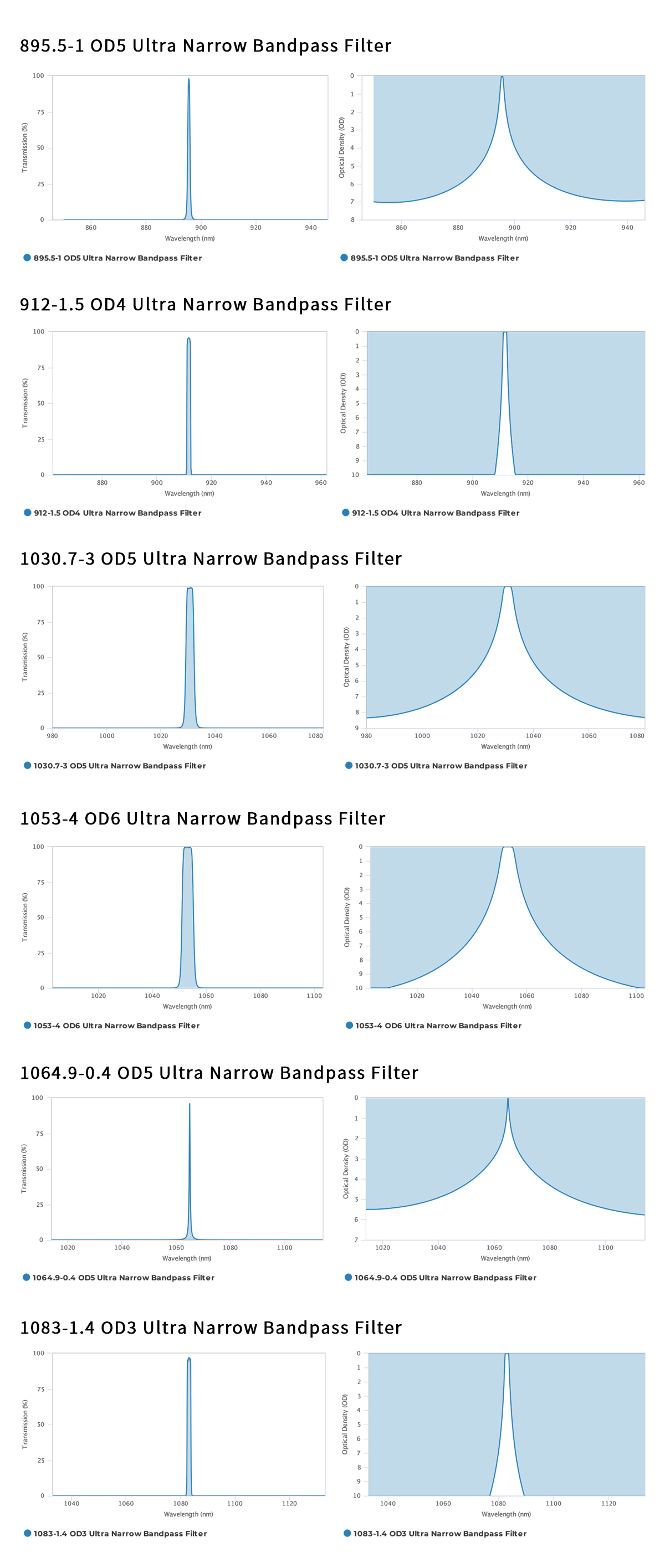

产品详情

超窄带通滤波片(660~779nm)；超窄带通滤波片(780~859nm)；超窄带通滤波片(860~1099nm)；超窄带通滤波片(1100~1699nm)

产品特点

优于传统层压滤波片的性能和耐久性。

采用创新的SIRRUS™等离子沉积工艺进行硬涂层处理。

定制可尺寸。

产品应用

激光雷达、天文学、拉曼光谱和各种激光应用

资料下载

超窄带通滤波片.pdf
